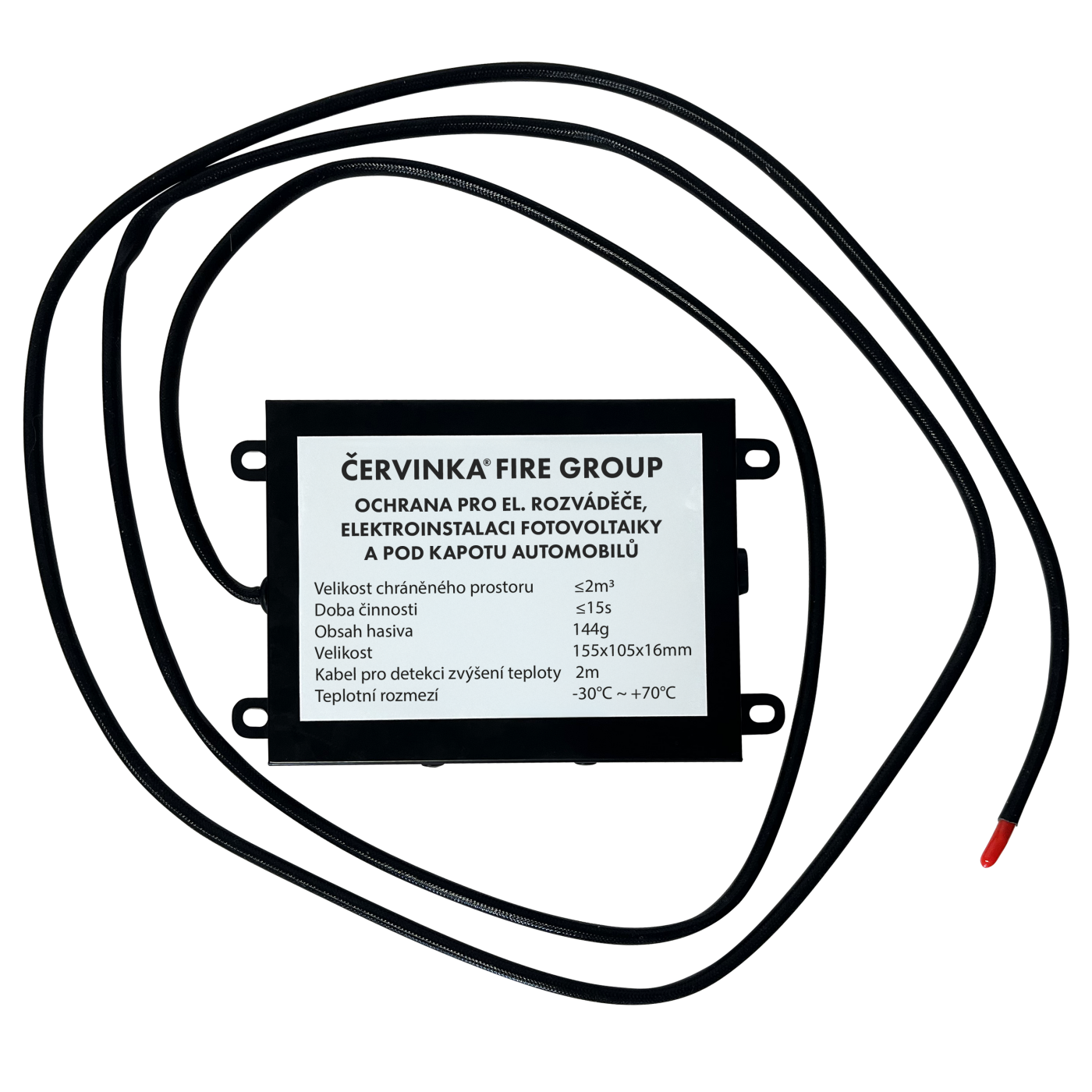

AHS-2 AUTONOMOUS FIRE EXTINGUISHING SYSTEM
The AHS-2 aerosol protection system is a compact and fully self-contained device designed to protect electrical switchgear, photovoltaic installations and automotive engine compartments from fire. The system is automatically activated when the temperature reaches above 100 °C and, thanks to a detection cable, can react quickly to the emerging risk. Its effectiveness lies in the absorption of oxygen in the protected area, effectively stopping the spread of the flame. Simple screw mounting makes installation quick and easy, and the device is also tested to the stringent European standards EN 60204-1:2018 and EN ISO 12100:2010, ensuring its reliability and safety.

PRODUCT FEATURES
- Fully autonomous aerosol extinguishing system
- activation at temperatures above 100 °C
- Temperature detection by means of a detection cable
- extinguishing principle : oxygen absorption
- protection of spaces ≤ 2 m³
- fast operation time ≤ 15 s
- extinguishing agent content : 144 g
- compact dimensions: 155 × 105 × 16 mm
- temperature resistance: -30 °C to +70 °C
- easy installation on the wall of the protected object
- Certified according to EN 60204-1:2018 and EN ISO 12100:2010

AREAS OF APPLICATION
Electrical switchboards, inverters and converters of PV systems, motor compartments of cars, other enclosed spaces with electrical or electronic equipment
