EPT-12/700 FIRE EXTINGUISHER PERFORMANCE TESTING EQUIPMENT

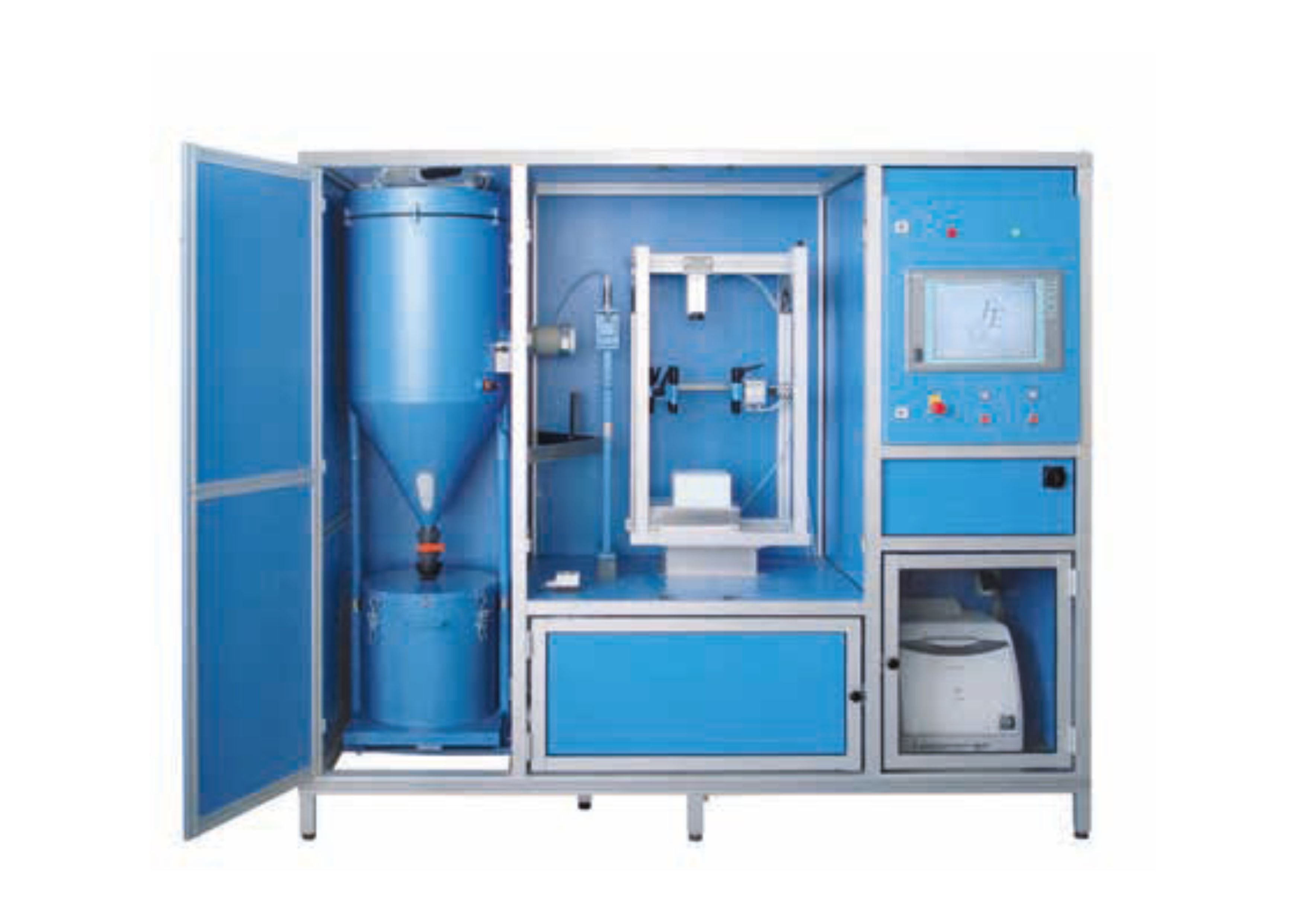

Powerful fire extinguisher testing equipment, model EPT-12/700

Fully automatic fire extinguisher testing equipment, model EPT-12/700 tests minimum functional duration of a portable powder extinguisher ranging from 1 to 12 kg depending on the amount of powder remaining. The device operates according to DIN EN3-7, absolutely dust-free and suitable for all types of powder.

THE DEVICE IS EQUIPPED WITH:
Siemens-Touch PC with colour laser printer
Siemens SPS - control system
FRITZ EMDE - Software
Digital scale, 30 kg with 5 g resolution
Soundproof and high-capacity vacuum pump mounted in a vibration-proof way.
Pressure sensor for determining the powder nozzle
Internal powder tank memory with 100 kg capacity
Manual quick release device
Lockable door

THE FOLLOWING PARAMETERS CAN BE DETERMINED AND SPECIFIED:
Clear time
Weight of full extinguisher
Weight of empty extinguisher
Remaining amount of powder inside the extinguisher

MAXIMUM SIZE OF EXTINGUISHERS:
Height: max. 700 mm
Diameter: max. 200 mm

OPTIONALLY AVAILABLE AT EXTRA COST:
Pneumatic clamping device
Automatic emptying of powder hopper
Test standard according to American standards or BS
Additional test units according to DIN EN 3 standard (compaction, compression test, burst test, impact resistance, aging test)

TECHNICAL DATA:
Construction: aluminium construction
Dimensions: approx. 2500 x 900 x 2150 mm
Compressed air: approx. 4 - 6 bar
Drive: 3-phase 400 V, 50 Hz, 12 A
Weight: approx. 400 kg
Colour: blue wrought enamel
