FR COLLAR

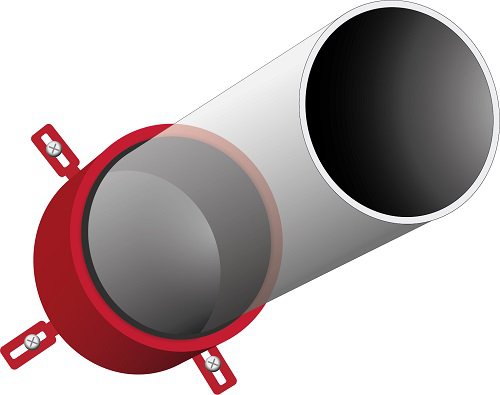

The Protecta® FR Collar consists of a two-part coated, circular steel shell, designedfor fitting around plastic pipes (PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC); bundles of plastic pipes with or without cables; bundles of cables. Cuffs contain safe and simple installation elements.

The cuff contains a graphite-based material that reacts to heat; in the event of a fire, it will foam and fill the hole created by the molten plastic through the penetration. It is installed on the outside surface of the wall or floor on one or both sides.

MAIN USES
Protecta® FR Collar is used to restore the fire resistance of flexible and masonry wall or floor structures where penetrations run through these structures.

FEATURES
Premium, fast-foaming, patented graphite material with globally recognized certification
Classified for fire sealing all types of structures and various building penetrations, including plastic pipe, composite pipe, metal pipe and cable harnesses
Approved plastic pipe sizes range from the smallest available to Ø 400 mm, each group with a wide range of pipe wall thicknesses
Cuffs are available in two different heights for different fire ratings to maximise cost effectiveness
Smaller pipes can be fitted into larger cuffs, which is advantageous for pipes that are installed at an angle or where the opening around the pipe is too large
Highly effective sound insulation
Has no detrimental effects on uPVC pipes such as BlazeMaster, see evidence of mechanical testing
Product is environmentally friendly and user friendly
Easy to install using commonly available standard installation components
Unlimited storage time (if suitable conditions are met)
30-year lifetime guarantee

SOUNDPROOFING RATING
RW 58 dB - cuffs installed as described in walls

FIRE RATING
EI240

PACKAGING VARIANTS
P269-30 / Ø 32 mm / 30 mm P038* / Ø 82 mm / 50 mm
P269-30* / Ø 32 mm / 30 mm P038* / Ø 82 mm / 50 mm
P269* / Ø 32 mm / 50 mm P273-30* / Ø 90 mm / 30 mm
P270-30* / Ø 40 mm / 30 mm P273 / Ø 90 mm / 50 mm
P270* / Ø 40 mm / 50 mm P039-30 / Ø 110 mm / 30 mm
P037-30* / Ø 55 mm / 30 mm P039 / Ø 110 mm / 50 mm
P037* / Ø 55 mm / 50 mm P040 / Ø 125 mm / 60 mm
P271-30* / Ø 63 mm / 30 mm P274* / Ø 140 mm / 60 mm
P271* / Ø 63 mm / 50 mm P041 / Ø 160 mm / 60 mm
P272-30* / Ø 75 mm / 30 mm P042* / Ø 200 mm / 75 mm
P272* / Ø 75 mm / 50 mm P043* / Ø 250 mm / 75 mm
P038-30* / Ø 82 mm / 30 mm P044* / Ø 315 mm / 75 mm

* on request
