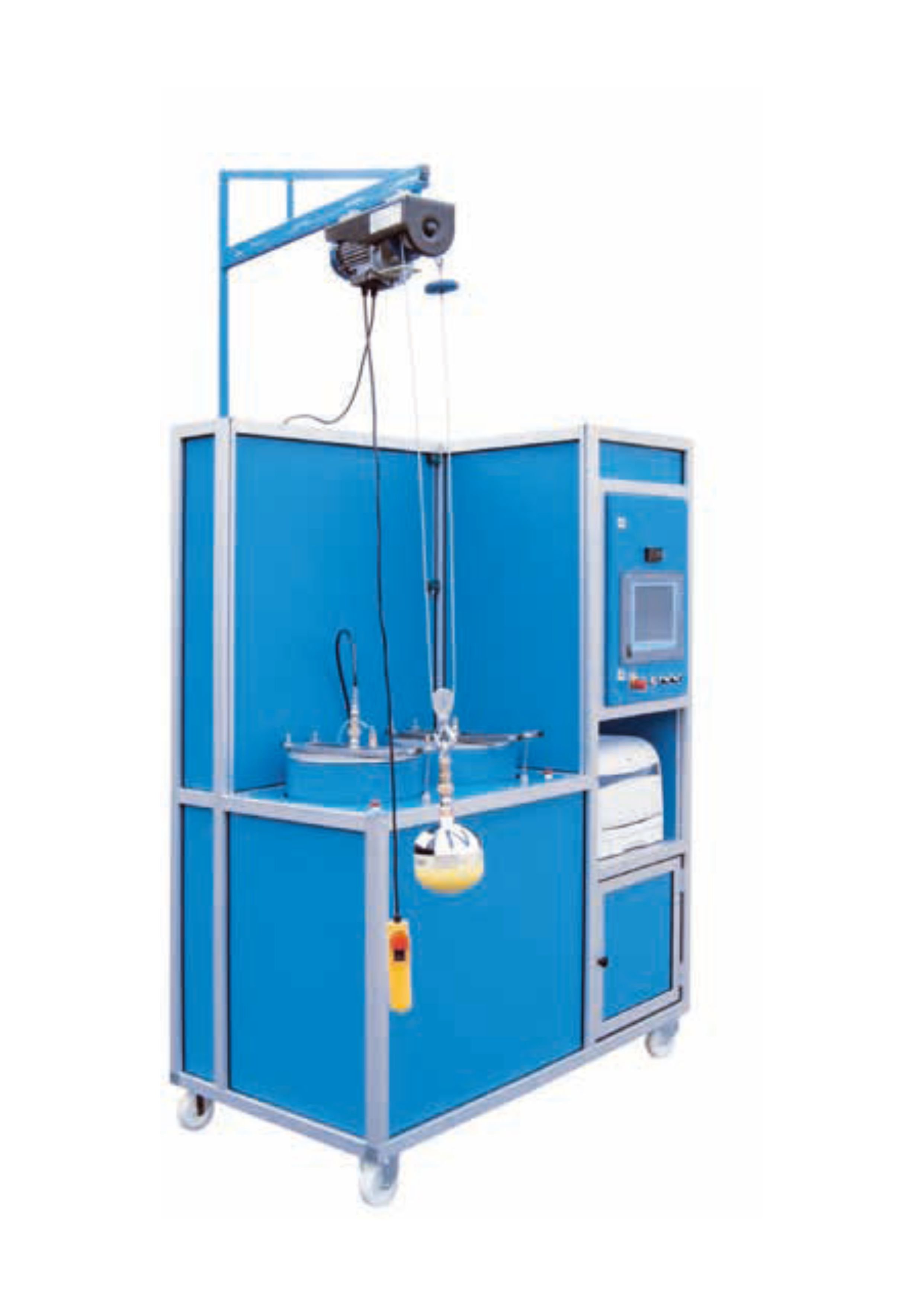

HIGH-PRESSURE TESTING EQUIPMENT FOR DETERMINING THE VOLUME EXPANSION OF COMPOSITE CYLINDERS HD - TA - CFK - 2TP
The HD - TA - CFK - 2TP is used for high-pressure testing of composite bottles to determineto test, record and store the remaining volume expansion.

The expansion of the bottle after the test is performed is shown on the display as a graph and can be printed or permanently stored. The device is supplied as a mobile unit with 2 fixed and 2 control wheels or as a stationary unit.

MAXIMUM PERMISSIBLE DIMENSIONS OF PRESSURE VESSELS:
Max. diameter: 300 mm
Max. length: 600 mm
Max. volume: 7 l

(larger cylinder sizes are available on request)

THE EQUIPMENT IS EQUIPPED WITH:
1 Siemens PC with touch keyboard
1 colour laser printer for data outputs
2 aluminium containers for attaching breathing apparatus
Digital scale 4,2 kg , resolution 0,01 g

ACCESSORIES:
2 screw adapters with large cone
2 screw adapters M18 x 1,5

ACCESSORIES AT EXTRA COST:
Electric lifting device for easy lifting of the breathing apparatus bottle into the aluminium container
Separate test vessel for testing large bottles.

TECHNICAL DATA
Dimensions (l x w x h): approx. 1700 x 1000 x 2250 mm
Construction: aluminium
Test vessel: 2 pieces of aluminium
Dimensions of test vessel: Ø 400 mm, height approx. 1000 mm
Weight (empty): approx. 245 kg
Working pressure: max. 450 bar
Compressed air: 6 - 8 bar
Drive: 230 V, 16 A, 50 Hz
Colour: Blue wrought enamel
