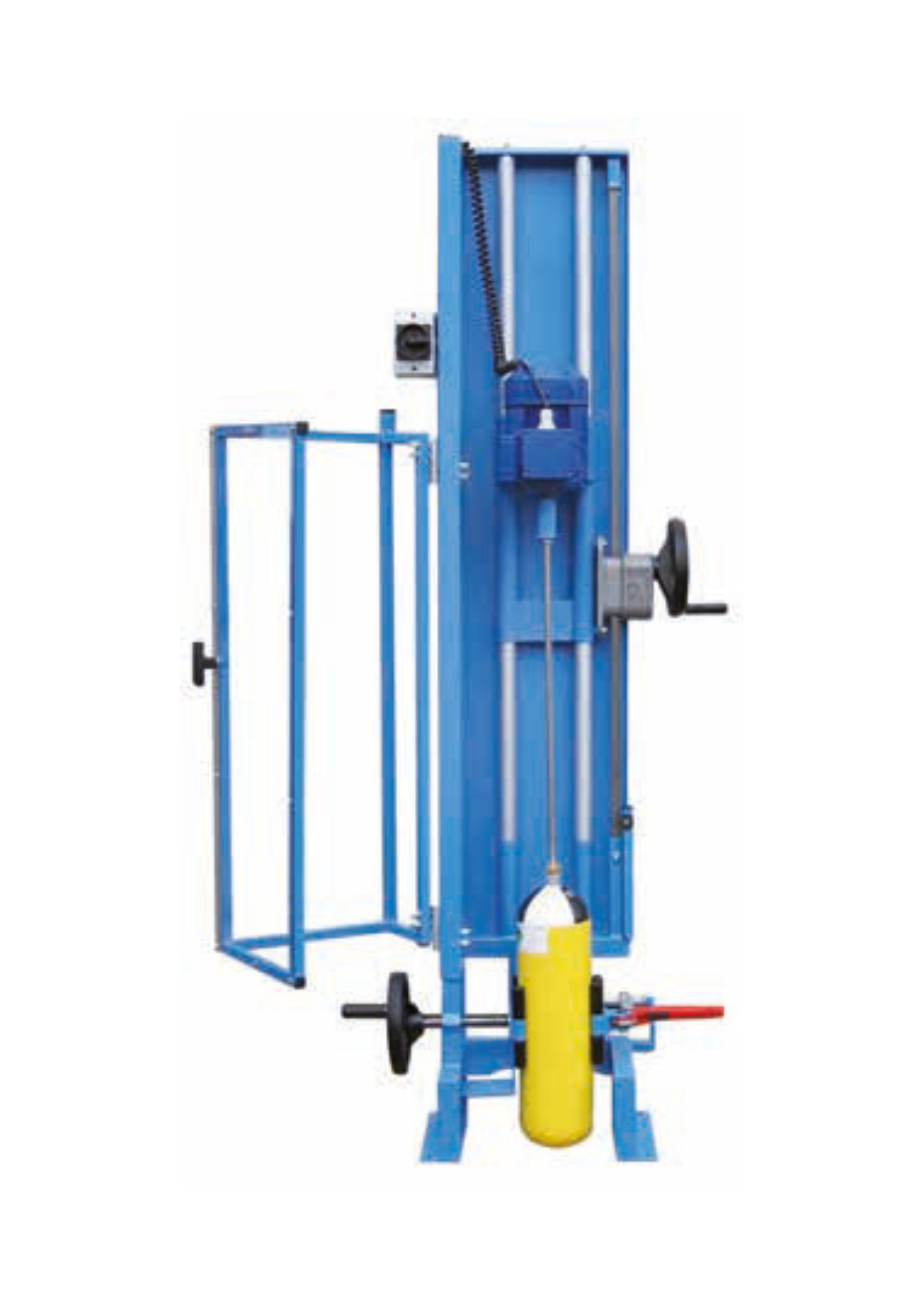

INDOOR CLEANING EQUIPMENT IRM - 600 - M
Indoor cleaning equipment controlled by a programmable control unit
The IRM-600-M is used to clean the inner walls of diving and air breathing cylinders. The inner side of the steel cylinder is cleaned of deposits by means of a special brush.
The speed of the frequency-controlled cleaning brush is approx. 1450 U/min. The infinitely variable height adjustment by means of a worm drive and a toothed comb is operated manually during the cleaning process.
All bottle diameters can be cleaned using various special brushes. Bottles with a total length of up to 580 mm and a maximum diameter of 220 mm can be cleaned with the machine. (Other sizes and diameters on request.) The device has a macrolon safety disc and a hand clamp.

The parts of the device are made of VA materials, which guarantee a long service life of all parts.
IRM-600-MP (No. 703 000)
with pneumatic clamp

TECHNICAL DATA
Dimensions (l x w x h): approx. 800 x 500 x 2000 mm
Drive: 230 / 400 V, 1.5 kW, 1480 U/min
Weight: approx. 95 kg
Cleaning brush: stainless steel
Clamping clamp: mechanical
Colour: blue wrought enamel
