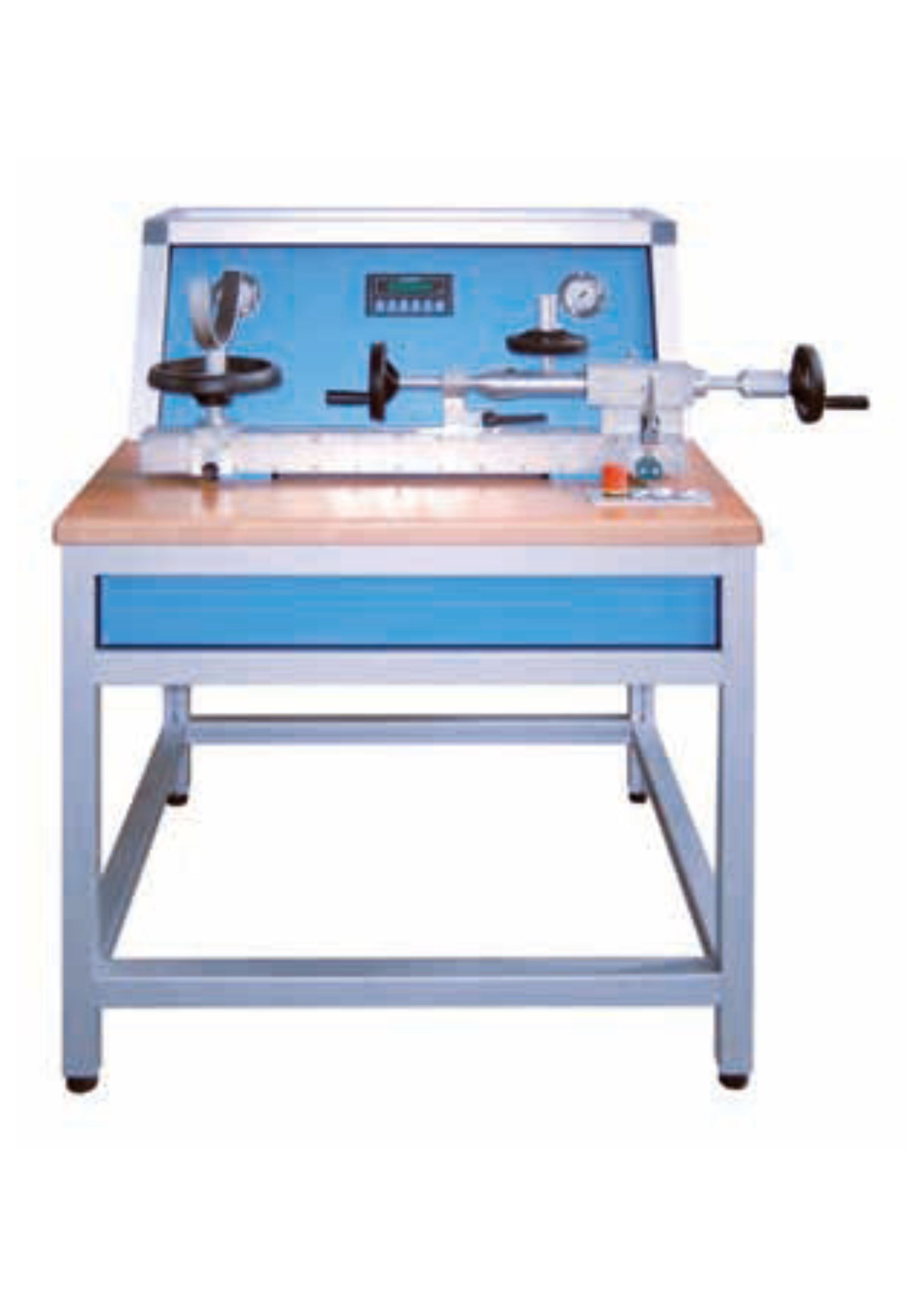

KUD5DI (POWERED BY COMPRESSED AIR)
KUD5DI CO2 filling unit suitable for filling any size, shape or design of CO2 cartridges (from 20 g) and CO2 bottles (up to 6 kg) with universal filling head.

THE UNIT IS EQUIPPED WITH:
CO2 pump powered by compressed air.
Integrated digital scale with range up to 30 kg with automatic cut-off function. 10 g resolution or optional
Filling of large bottles over 6 kg must be done on a separate floor scale with automatic cut-off function (optional accessory)

OPTIONALLY AVAILABLE AT EXTRA COST:
Equipped with mechanical sliding scale
Electrical power supply with 230 / 380 V, 60 Hz
Equipped with label printer

TECHNICAL DATA
Dimensions (l x w x h) approx.: 1000 x 900 x 600 mm
Drive: compressed air from 8 bar 800 ltr. Air/min.
Drive: 230 V, 50 Hz
Colour: Blue or silver grey wrought enamel

STANDARD ACCESSORIES:
3 adapters for filling CO2 cartridges, 18 mm, 25 mm and 32 mm diameter
1 CO2 high pressure hose, 2 m
1 rotary filling valve "DF 1" for filling CO2 bottles
1 height-adjustable support, KS-5
1 metal box incl. hexagonal socket and tools, 10-32 mm
1 set of seals for filling adapters
