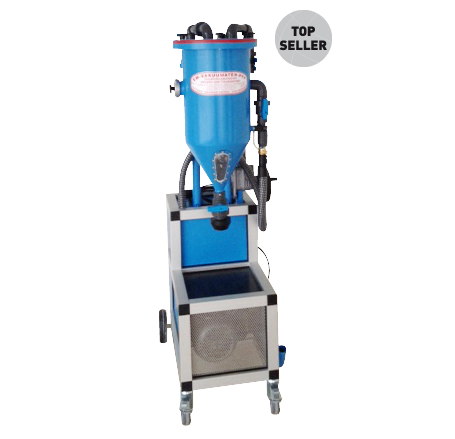

MOBILE POWDER FILLING MACHINE PFF-SUMATIC-V40
World news - the quietest machine on the market

The PFF-SUMATIC V40 is the quietest machine on the market (64 dB) for emptying and filling extinguishers 1 - 12 kg of all brands. The machine has a high performance. The extinguisher can be vacuumed and refilled in just 10 seconds.

In conjunction with the PSDV-I pneumatic rotating and clamping device, manual vacuuming of the extinguisher is eliminated. By rotating the extinguisher, vacuuming is made possible within seconds. Unique ease of work and time saving with only one handle. (The manual rotary clamp is also available as M-SDV, a manual, rotary clamp with quick latch (No. 101 200).

Storage max. 30 kg
Fire extinguishing powder in the container
Suitable for all types of powder
(ABC, BC, etc.)
Absolutely dust-free emptying and filling
Manual height adjustment
Easy and user-friendly operation
Maintenance-free polyethylene filter unit with pneumatic cleaning
Mobile compact design
Emptying of fire hoses from 0.6 m to 10.0 m
High-quality, very noiseless pump

The device is equipped with:
Durable suction hose, 3 m with connection coupling
Set with 4 suction probes 16, 20, 25 and 30 mm
4 pulleys, 2 of which with locking brake
Robust metal ball valves on the filling and suction valves
Universal rubber filling adapter for all sizes and all brands of hand-held fire extinguishers
Large, removable, diagonally positioned powder screen for removal of lumps and foreign bodies

TECHNICAL DATA
Construction: aluminium construction
Container: Steel plate
Drive: 230 V, 50 Hz, 10 A
Weight: approx. 110 kg
Transport height: approx. 1700 mm
Working height: adjustable stroke max. 750 mm
Width: max. 520 mm
Length: approx. 720 mm
Colour: Blue wrought enamel
