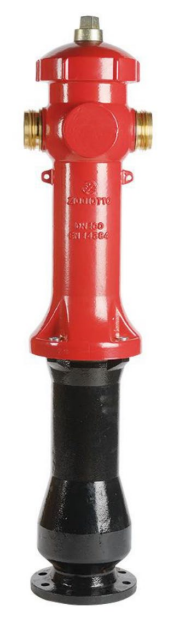

OVERHEAD HYDRANT GARDA STREET TYPE

The GARDA overhead hydrant is certified according to EN 14384.
Street type: interlocking internal spindle, internal valve always closed to prevent water leakage.
Opening and closing of the hydrant by means of a suitable key.
Easy maintenance by opening the top of the hydrant, without any excavation.
Special bolts without nuts. Outlets and flanges in accordance with EN 14384.
CSI 0497/CPR/3655 approval.
Hydrant body made of cast iron GJL 250 in accordance with UNI EN 1503-3; working pressure 16 Bar.
Equipped with an automatic drainage system that allows the hydrant to be emptied when the internal valve is completely closed.
45° conical seal, suitable for avoiding residues and preventing premature wear.
Easy disassembly and maintenance of internal components.
Coating: epoxy powder RED RAL 3000 and BLACK RAL 9005.

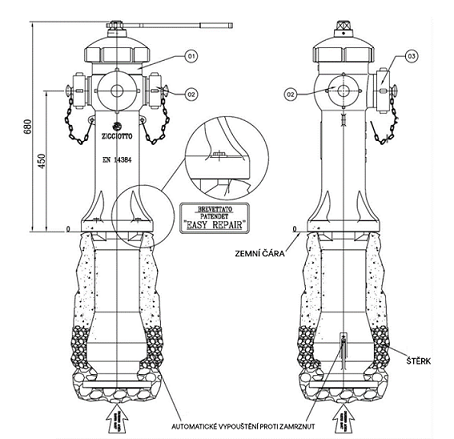

Technical drawing:
