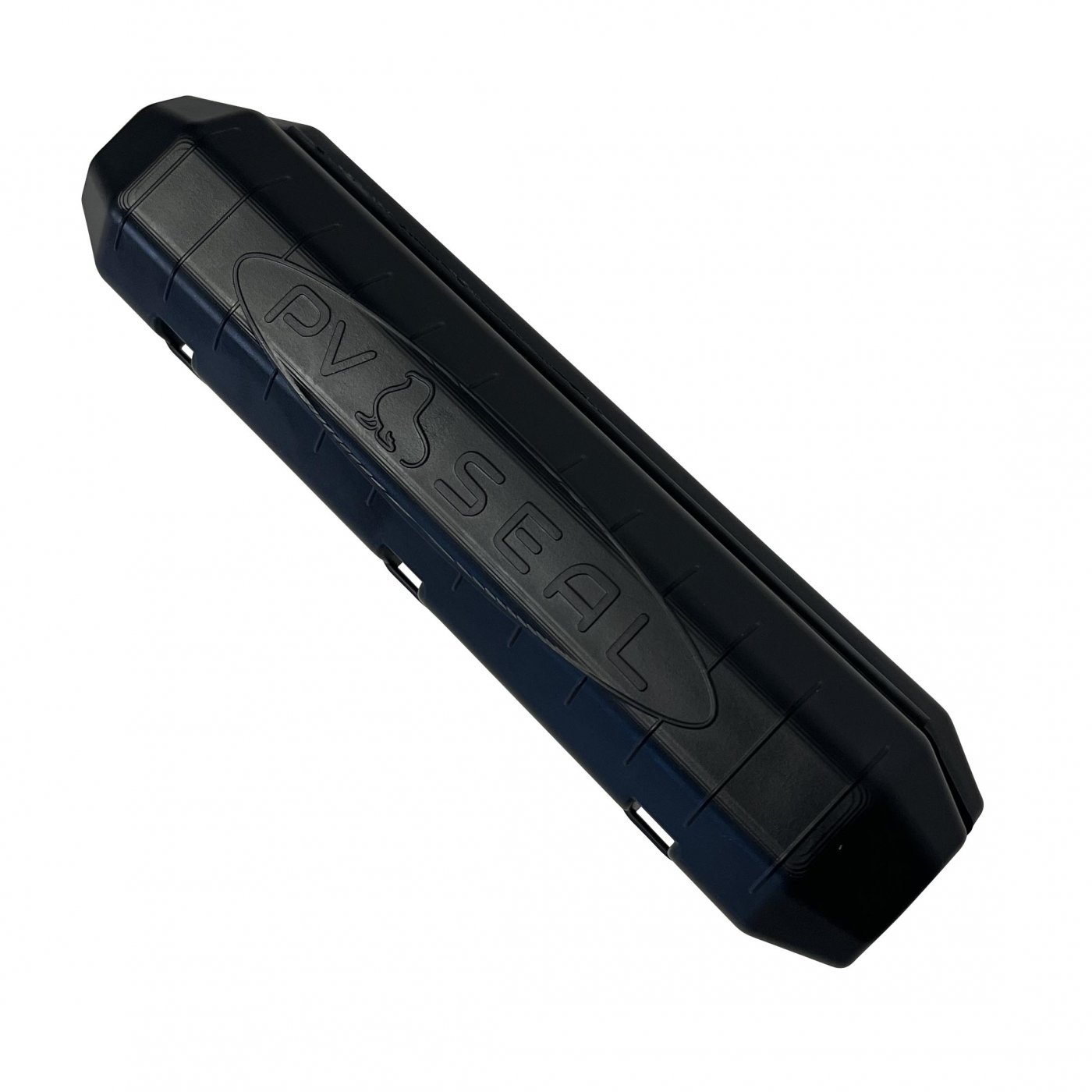

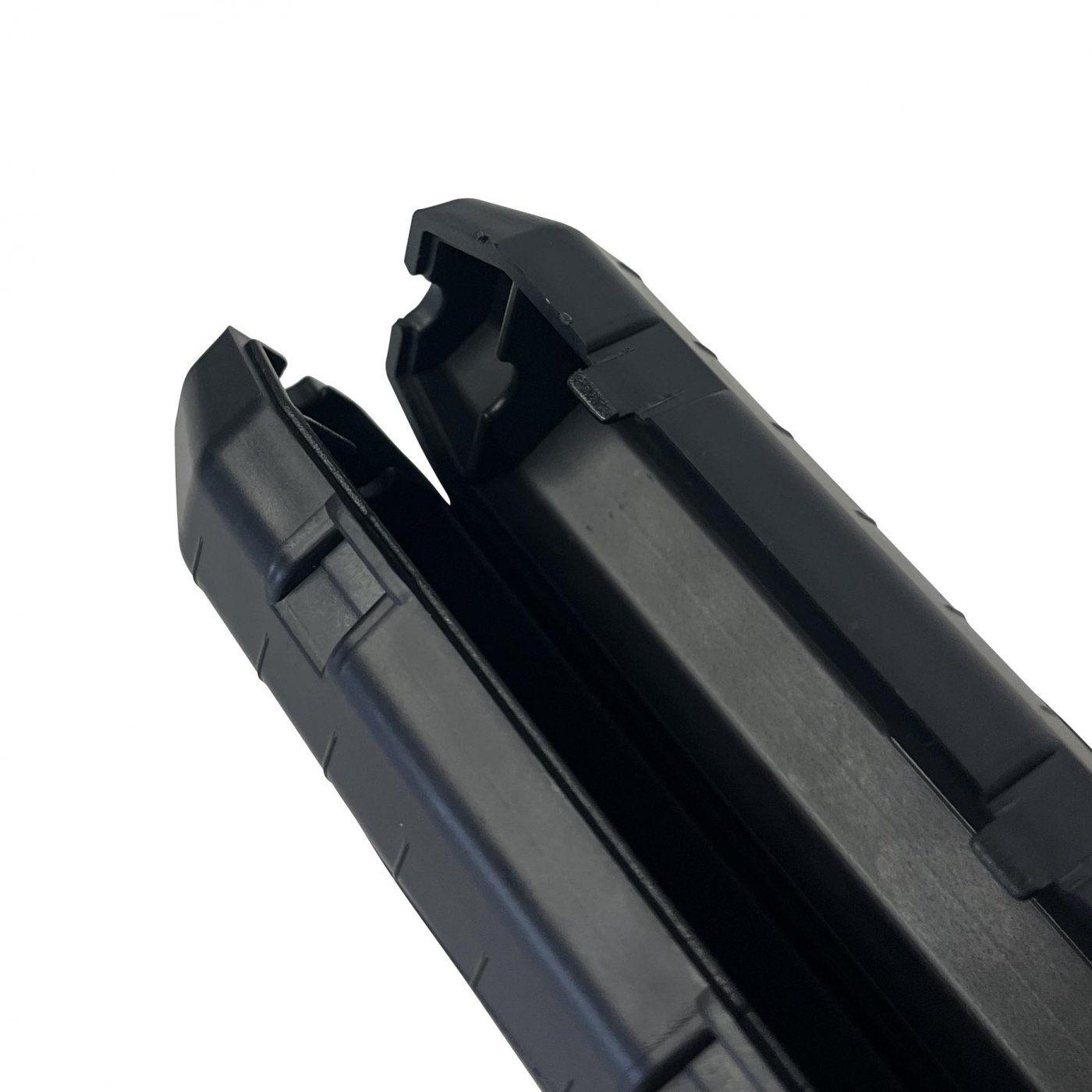

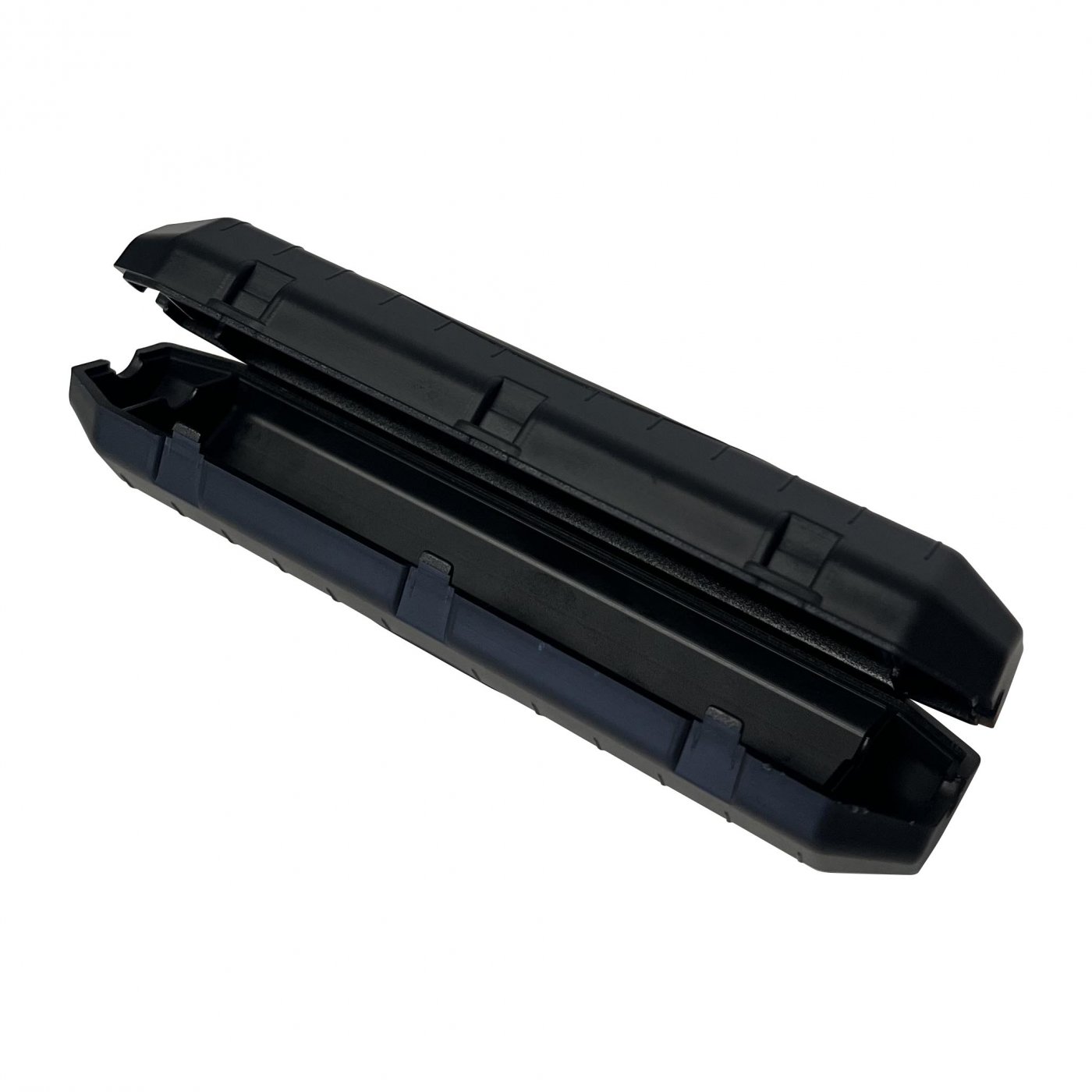

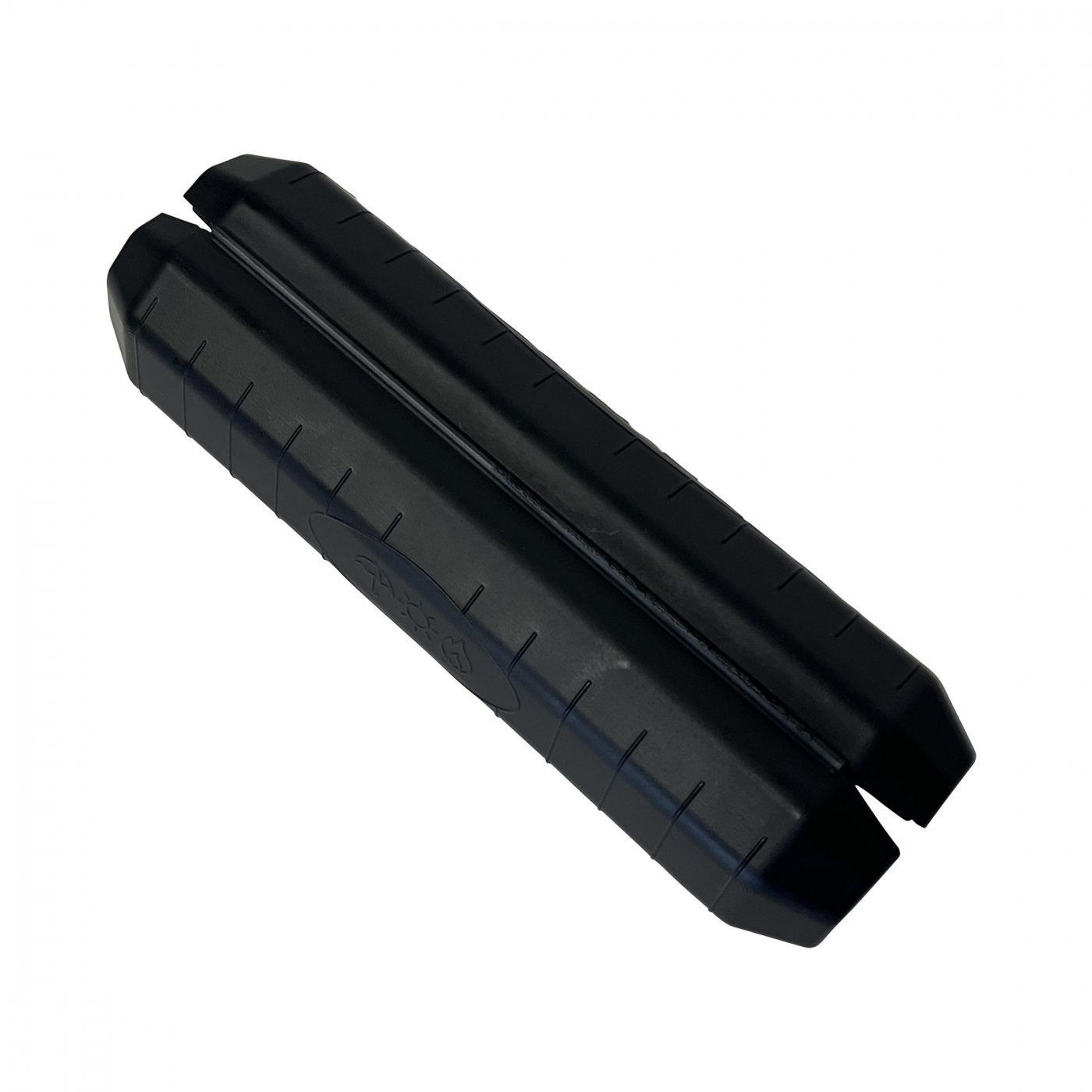

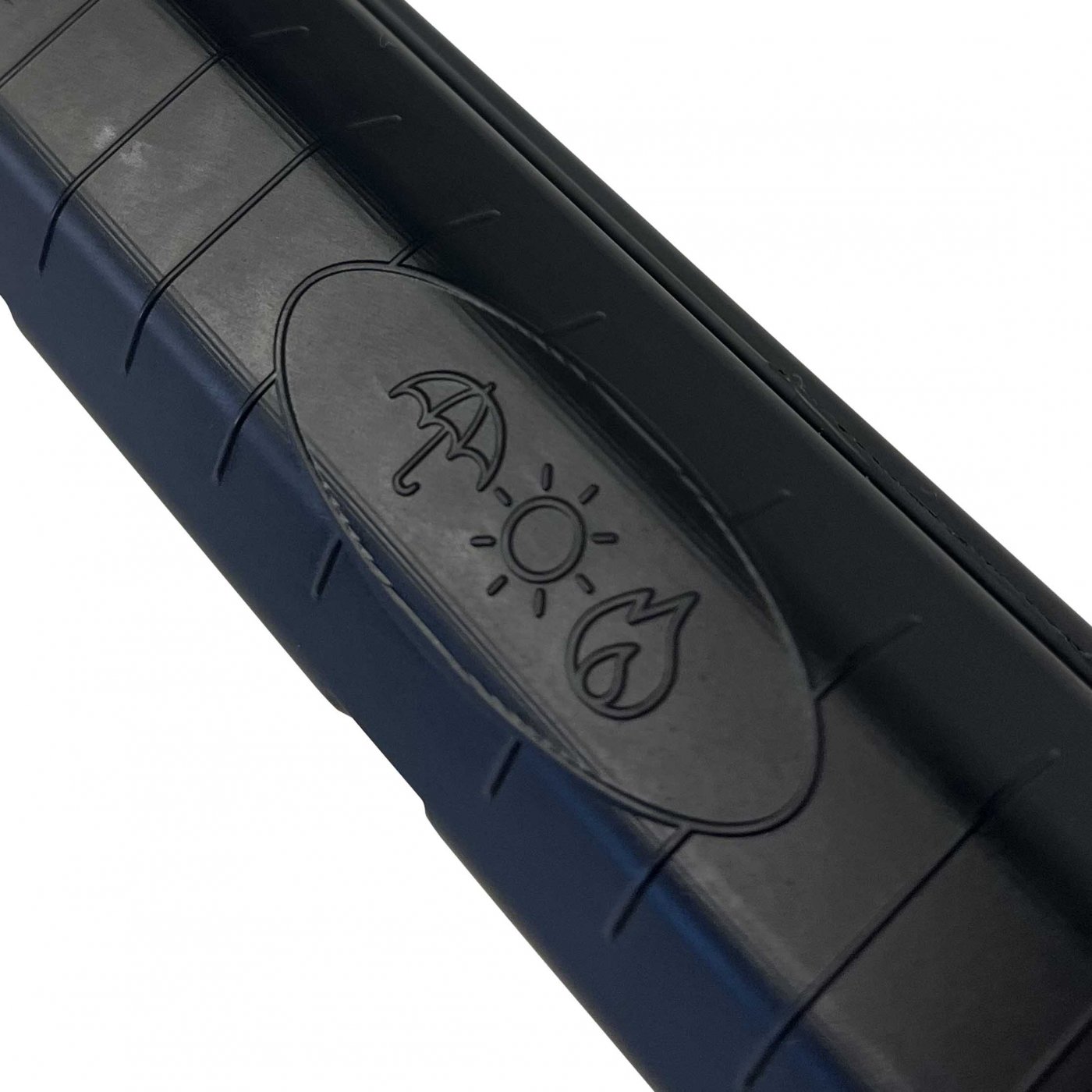

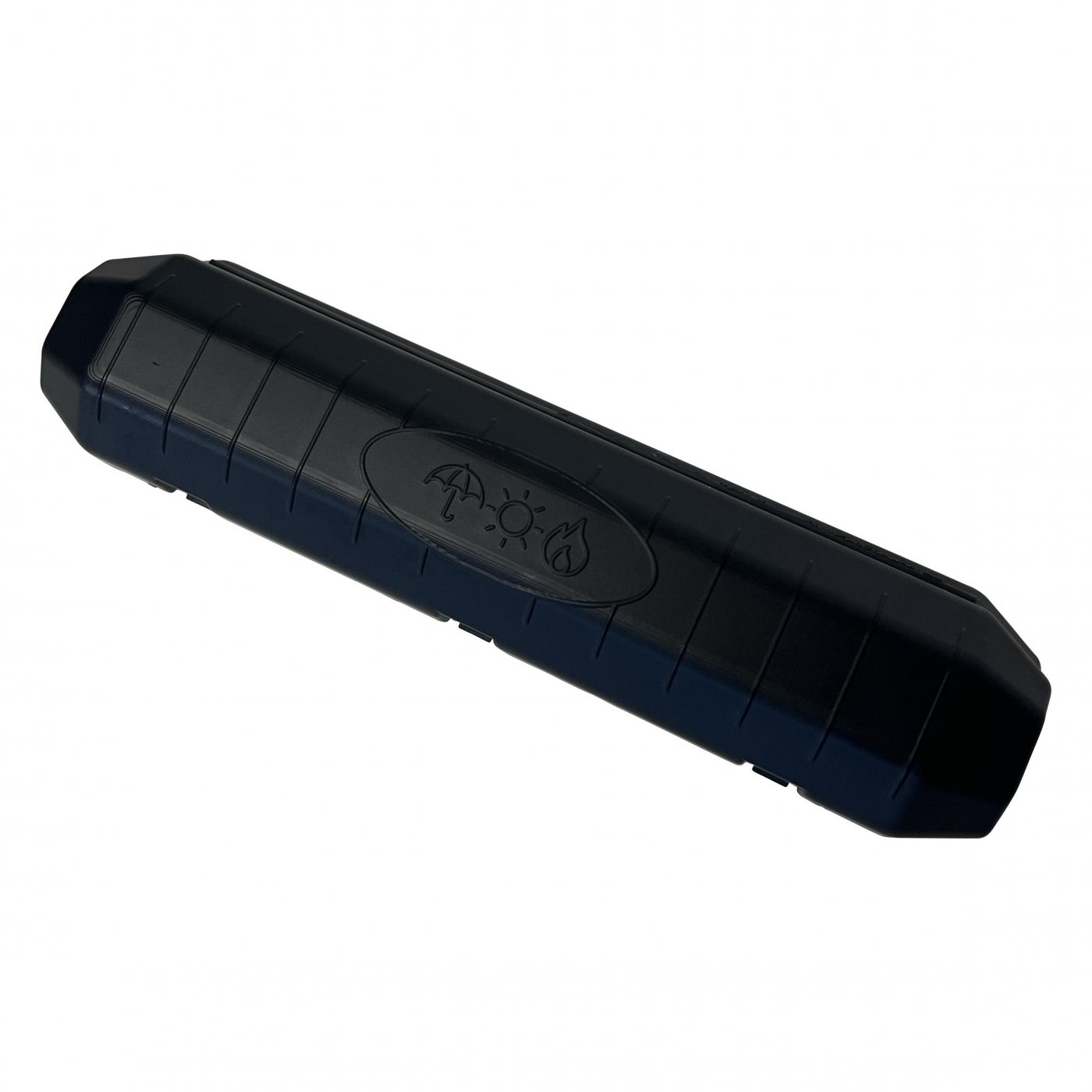

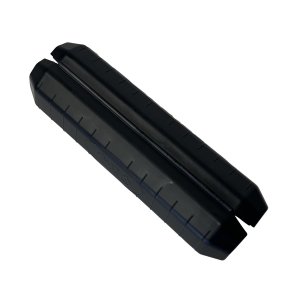

SELF-EXTINGUISHING CAP

The self-extinguishing cap is a patented product designed for long-term protection of cable connections and connectors in electrical and photovoltaic installations. Cable connections are a critical point in the wiring - their failure can not only cause a reduction in the efficiency of the entirebut also an increased risk of short circuits, local overheating and, in extreme cases, fire.

The enclosure is designed to comprehensively eliminate these risks. Thanks to the self-extinguishing properties of the material and the optimised design, it reliably protectsprotects connectors from moisture penetration, mechanical stress and degradation caused by UV radiation. At the same time, it provides electrical isolation of live parts, thereby increasing the level of safety for the operator and the entire system.

The product is backed by industrial and utility models, tested in a testing and certification laboratory and complies with international standards EN IEC 60695-2-11:2021 and UL94. The patented shape allows fast and precise assembly without the need for additional modifications. These features make the flameproof cap an efficient and economically inexpensive element that contributes significantly to the durability, reliability and safety of modern electrical installations.

PRODUCT FEATURES
- Protects the connector from dust, snow, rain and UV radiation, thus extending its life and preventing corrosion.
- Prevents the ingress of water and moisture that could cause a short circuit or damage to the connector.
- Prevents degradation of cable and connector insulation by sunlight.
- the cap covers the live parts of the connector and minimizes the risk of electric shock.
- protects against damage caused by shock and vibration.
- improves the appearance of the installation
- patented shape allows quick and easy fitting.
- The product is protected by industrial and utility design and has ATEST from the testing and certification laboratory.
- complies with EN IEC 60695-2-11:2021 (GWEPT:950), tested at 950 °C.
- V0 classification according to UL94.
- 15 years extended warranty.

AREAS OF APPLICATION
cable joints in PV systems, photovoltaic systems, outdoor electrical installations, industrial cabling, power industry connectors, junction boxes, cable harnesses in harsh operating conditions
